Harden® Four Shaft Shredder QSH Series - Hydraulic Drive
Product catalog download     >>

Product images

Product description

Harden® QS Series four-shaft shredder has an intelligent control system for each of shaft, which enables each shaft working with their own shredding and protection actions to increase the shredding frequency and output.

Harden® QS Series equipped hydraulic and electric motor combine driven system, which remains benefits, high torque and flexible control for main shaft, high efficiency and energy saving for vice shafts.

QSH is excellent if heavy-duty and particle size control shredding works.

Features of Harden® Four Shaft Shredder

· Strong adaptability to material, one-time shredding to the required particle size

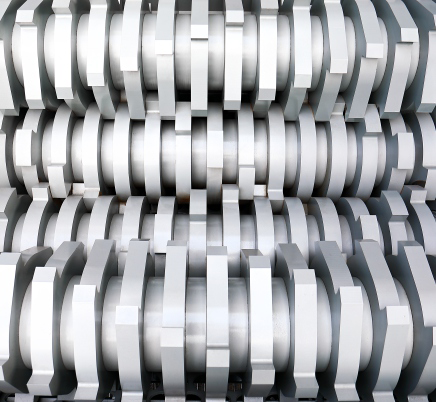

· Specially arranged designed blades promise high-quality efficiency
· Optimized mesh design ensures the maximum through rate of the material
· The shaft offers large torque to break a variety of complex material
· Imported blades material from Europe and it is not easy to be broken
· The shaft which is processed by multiple heating treatments and the fine grinding
· Bearing adopts automatic lubrication and multiple sealing, shreds the material that contains high dust or high moisture content
· Automatic overload protection to realize positive and negative rotation

Four Shaft  Independent Working

Self Torque Matching & Overload Protection

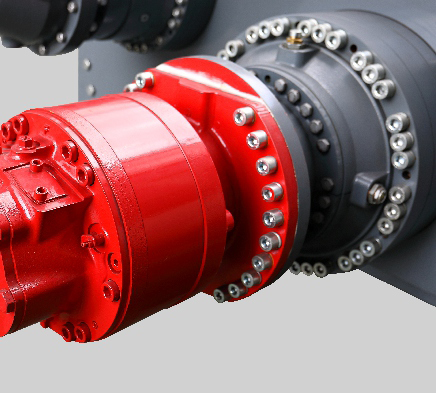

Hydraulic Driven & Quality Reducer

Compact Structure & High efhiciency

Integrated Bearing Pedestal

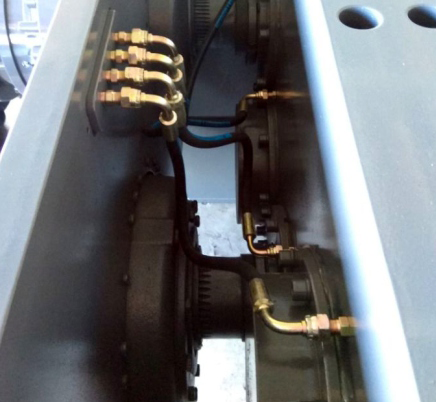

Central lubricatisn & Stable Construction

Drawing
Parameters
Model
QS1012
QS1016
QS1314
QSH1012
QSH1314
Motor Power (KW)
(45+30)*2
75*2+45*2
210
136
192
Cutting Chamber (A*B)(mm)
1020*1200
1000*1600
1380*1400
1000*1200
6138*1400
Overall Dimensions (L*W*H)(mm)
4530*1730*2200
5592*3120*2012
4486*2000*1206
4200*1663*2175
4486*2000*1206
Capacity (Ton/Hour)
3-8
6-12
6-12
3-8
6-12
Application
Bulky Waste
200L Oil Drum
IBC
Waste Rubber Tires
Plastics Pallet
Waste Home Appliance
Shredding result
