Harden® Two Shaft Shredder TD Series - Motor Drive
- Model
- TD1216
Review
Description
Harden® Double Shaft Shredder - Two Drives - Heavy Duty
Harden® TD/TDH series are heavy-duty double shaft
shredder that are suitable to process all kinds of solid waste and gain
recognition from customers by its powerful and stable performance. TD series
are driven by electrical motors and TDH by hydraulic system. The installed power
is range from 60 to 400KW.
Harden® owns several advanced technologies of heavy-duty double shaft
shredder, including splined shaft coupling, integrated knife box assembly and so
on.
Features of Harden® Double Shaft Shredder

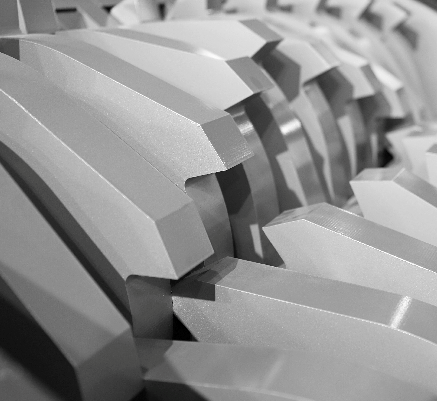

Imported high-strength alloy knives
Stable quality & durable
Exclusive cutting chamber design
Works smoothly & strong bearing capacity
Unique spline bearing pedestal
Quick shaft change & uniform stress

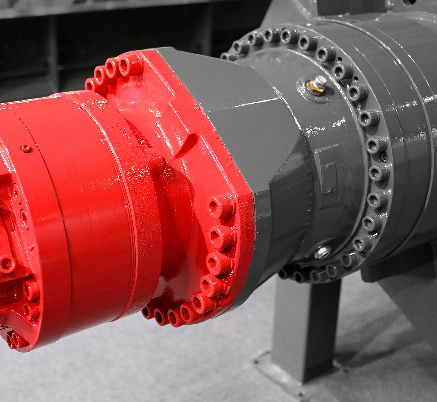

Transmission protection structure
Labyrinth dust prevention & oil isolation

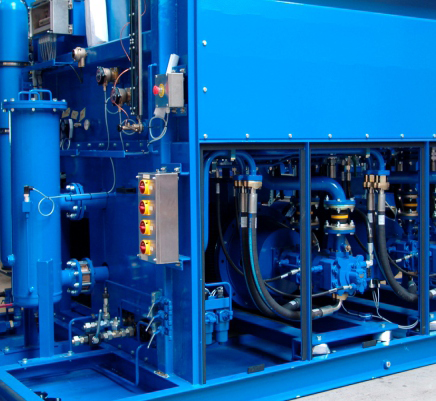

Professional hydraulic system
Automatic control & strong power
Drawing
Parameters
Model |
TD612 |
TD912 |
TD919 |
TD1016 | TD1216E | TD1216H |
Dimension(L*W*H)(mm) | 1370*2392*3475 | 4824*2773*3245 | 6428*2719*3361 | 6720*3571*4257 | 5069*3430*4745 | 5920*3494*6350 |
Total Weight (kg) |
6940 |
10800 |
14400 |
16800 | 18200 | 22000 |
Cutting Chamber (L1*W1)(mm) |
1200*600 |
1200*900 |
1900*900 |
1600*1000 | 1600*1200 | 1600*1200 |
Number of Shaft (pcs) | 2 | 2 | 2 | 2 | 2 | 2 |
Shaft Speed (rpm) | 16/26 | 10/13/20 | 10 | 12/21 | 12 | 10/13 |
Thickness of Rotating Knives(pcs) | 30/40/60 | 30/40/60 | 50 | 30/40/50/60 | 40/60 | 40/60 |
Number of Rotating Knives (pcs) | 20/30/40 | 20/30/40 | 38 | 26/32/40/52 | 26/40 | 26/40 |
Drive System | Electric | Electric | Electric | Electric | Electric | Electric |
Power Rating (kw) | 2*45 | 2*75 | 2*75 | 2*110 | 2*132 | 2*132/2*160 |
Electric COntrol Cabinet System（mm) | 1000*1800*600 | 1400*2200*800 | 1400*2200*800 | 1400*2200*800 | 1200*2000*600 | 1400*2200*800 |
Application
Hazardous Waste
Waste Home Appliance
Bulky Waste
Tyres
Leather Scraps
Municipal Waste
Medical Waste
Construction Waste
Shredding effect
Selected cases
For bulky waste
For Kitchen waste
For medical waste
For paper mill waste
